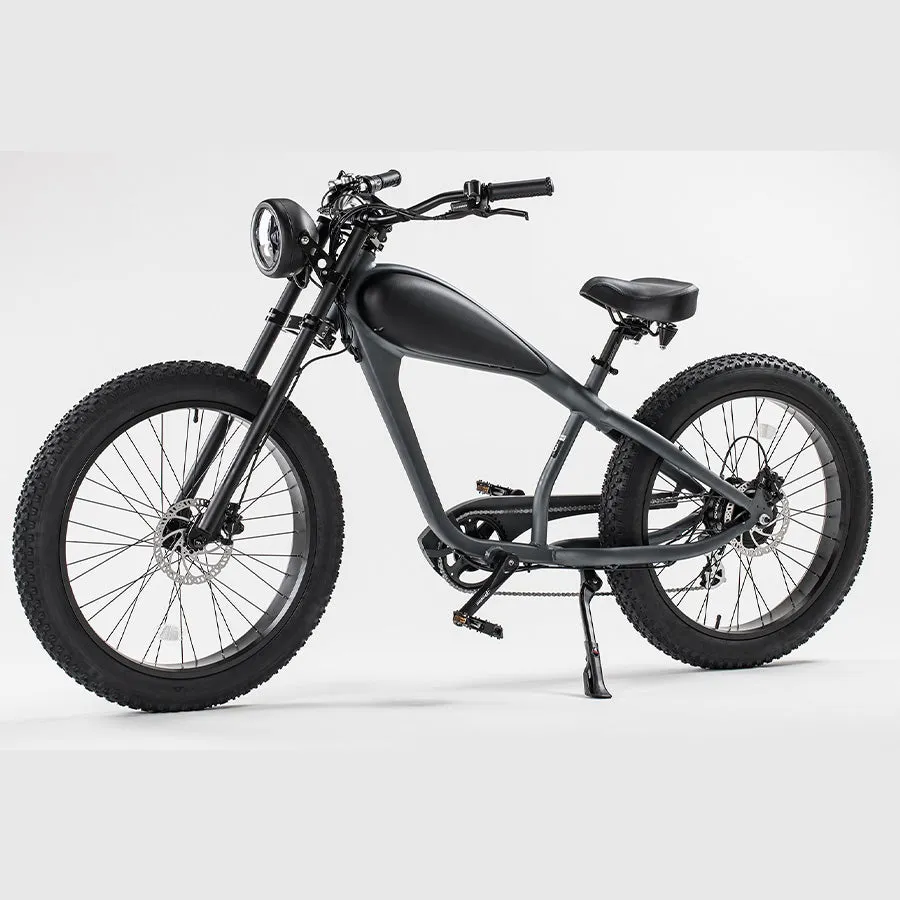

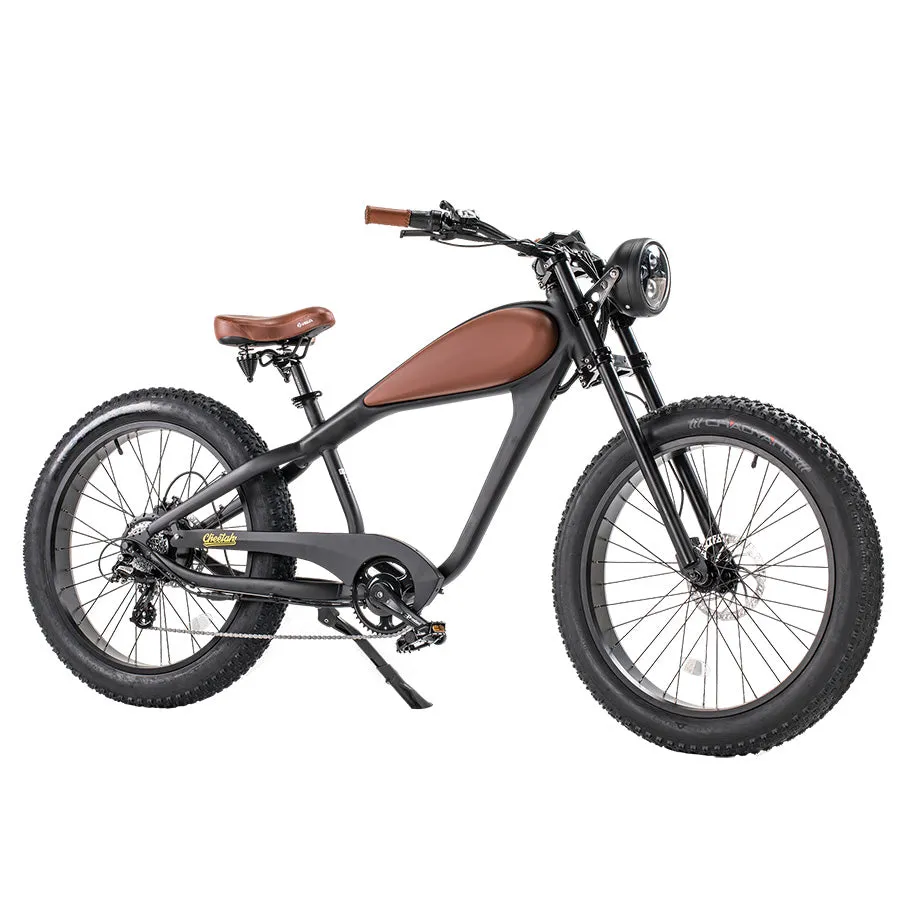

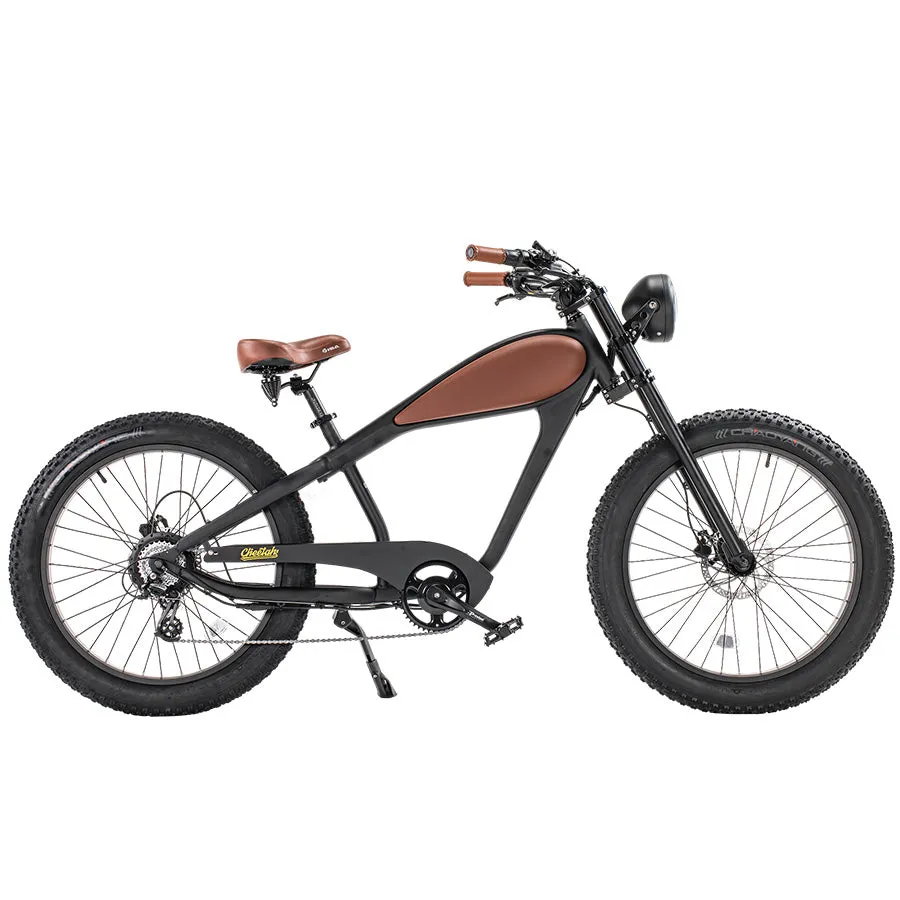

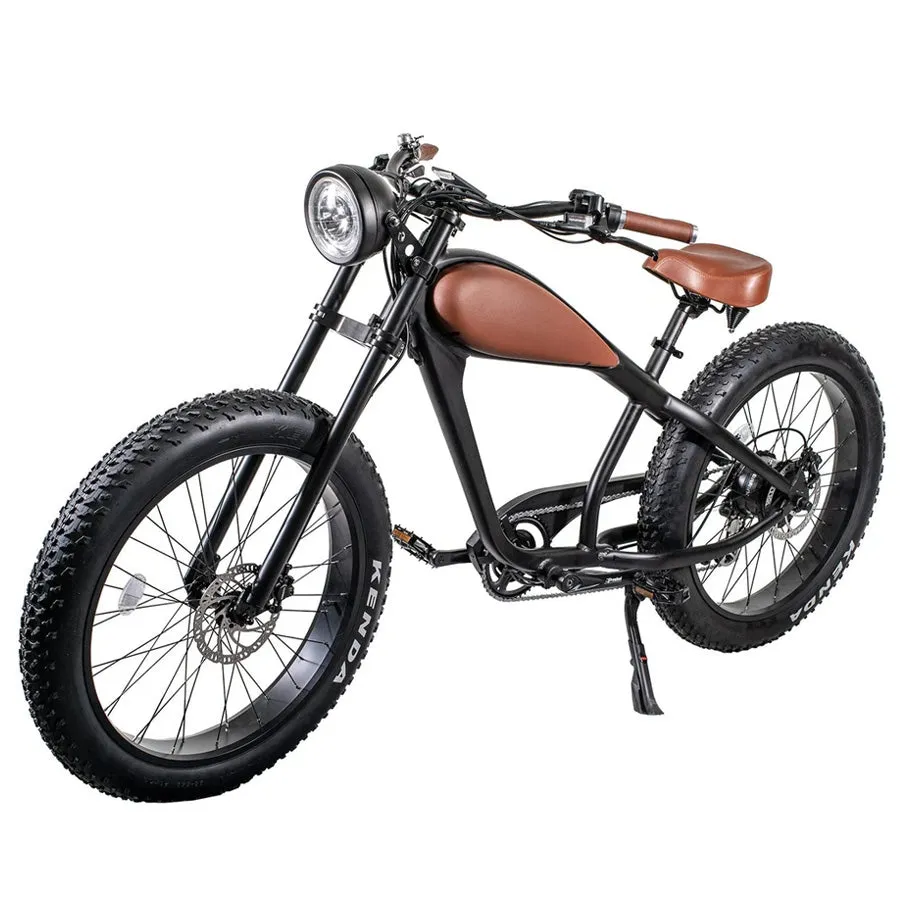

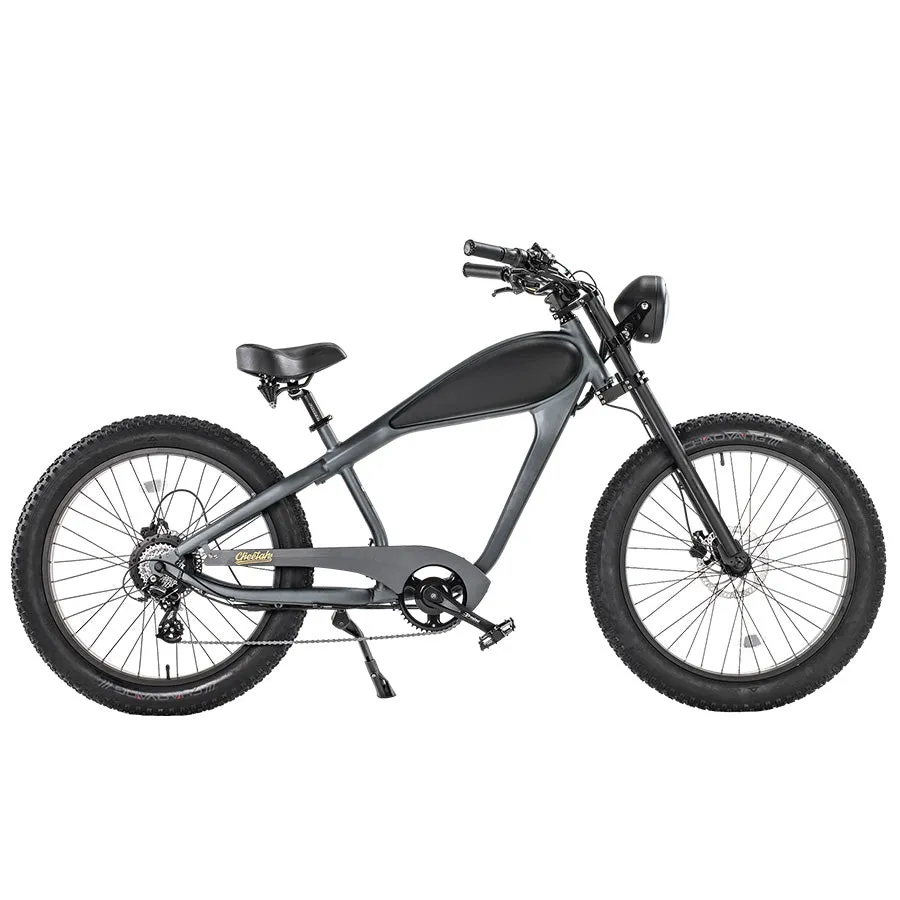

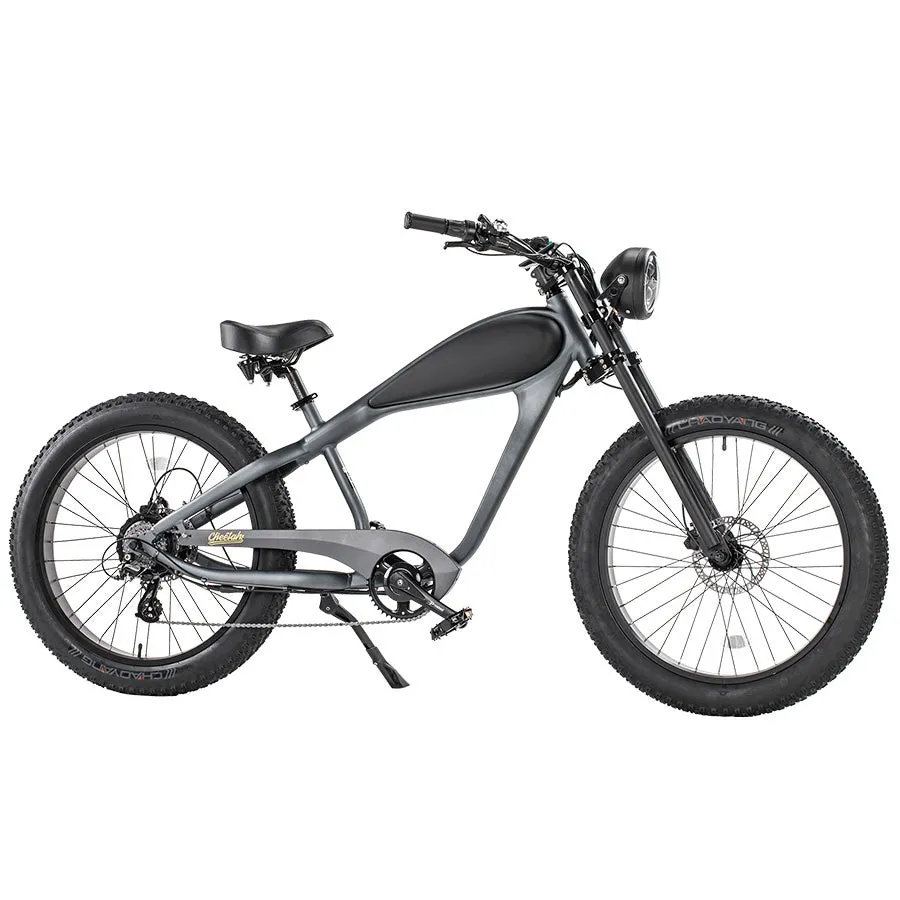

Revi Bikes Cheetah
Fat Tire Electric Bike - Top Speed 28mph - 750W (1200 W Peak)
TOP SPEED
MOTOR POWER
Removable Battery
TIRES
Seat Height
PAYLOAD CAPACITY
750W Bafang Motor
With a robust 750W motor capable of reaching a peak power of 1200W and delivering 95 Nm of torque, this vehicle ensures a seamless and effortless ride whether you're tackling steep hills or navigating busy urban streets.
Samsung Battery
Choose from two battery capacity options: 13Ah for everyday practicality and 17.5Ah for adventurous exploration. With SAMSUNG batteries ensuring safety, conquer any distance with confidence.
Hydraulic Disc
The 180mm hydraulic disc brakes provide reliable and sensitive braking performance. Whether it's a sudden obstacle or a steep descent, hydraulic brakes empower riders to exercise precise control over the speed. Whether it's a sunny day or a rainy afternoon, hydraulic brakes maintain the sensitivity and reliability.
Oversized Cruiser Saddle
The generous surface area of the bike seat allows most of your buttocks to be wrapped in a gel-like memory foam material, effectively reducing pressure on your buttocks and tailbone. Two sturdy spring balls underneath effectively soak up any jolts from potholes or uneven surfaces.

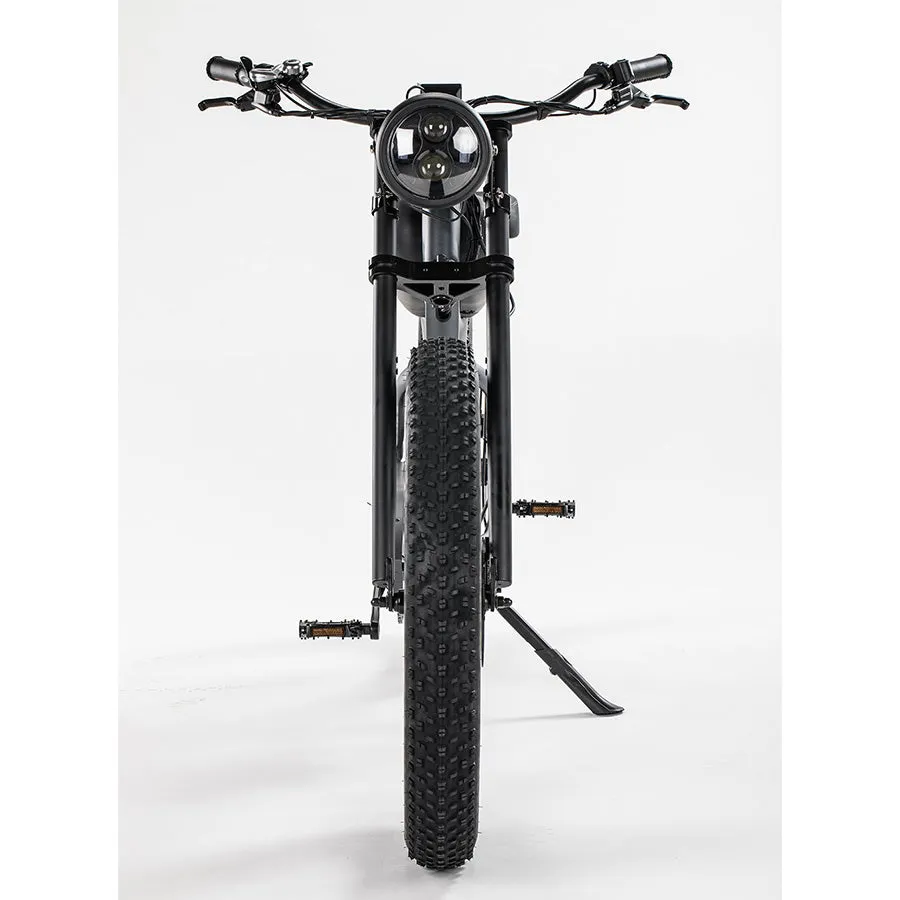

Bright LED Headlight
The circular 6.5-inch retro LED headlight features four high-intensity LED chips, designed for both high beam and low beam modes. The high beam projecting light that reaches a considerable distance and offers an exceptionally clear field of vision, enhancing safety. The low beam provides a broader, brighter, and wider illuminated area, further enhancing visibility.
SPECIFICATIONS

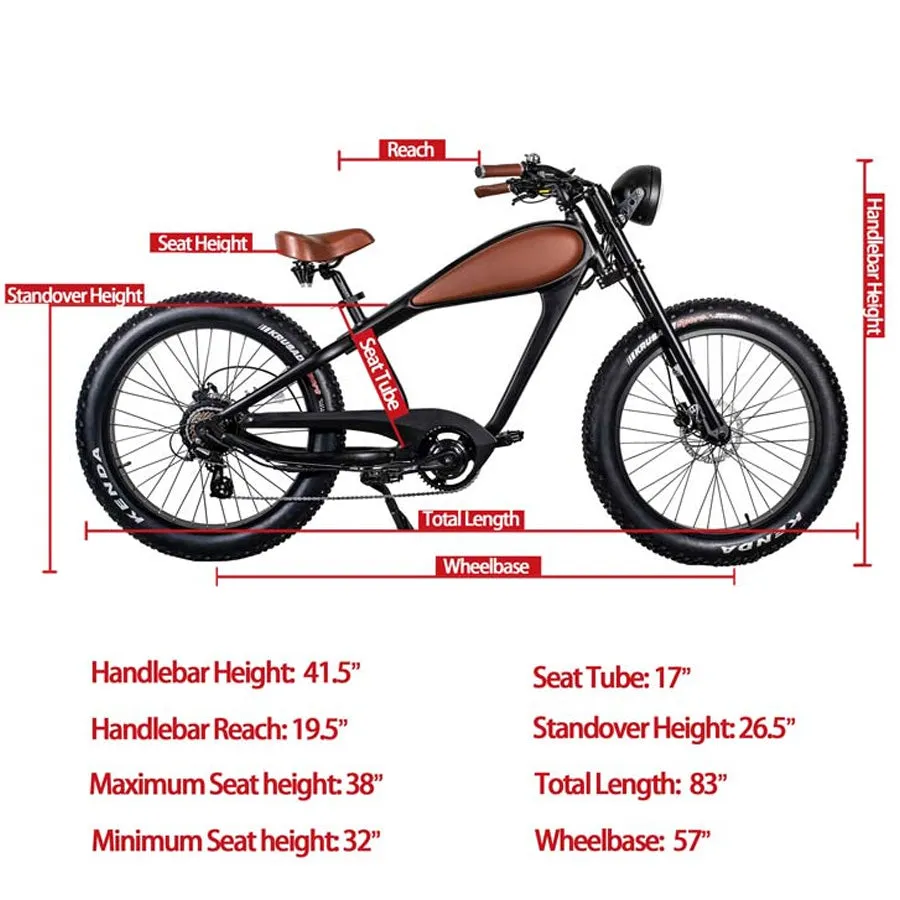

Specifications
| Handlebar Height：41.5” | Standover Height: 26.5" |
| Minimum Seat Height: 32" | Maximum Seat Height: 38" |
| Seat Tube: 17" | Total Length: 83" |
| Wheelbase: 57" | Reach: 19.5“ |
General
| Model: Cheetah |
| Motor: 48V 750W Bafang™ |
| Motor Peak Output: 1200W |
| Battery Cell: Samsung |
| Battery Type: Lithium-ion |
| Battery Capacity: 48V 13Ah/17.5Ah |
| Range Per Charge: |
| 20-30 Miles / 13Ah 26-40 Miles / 17.5Ah |
| The max range is achieved underbelow conditons:rider weight 120lbs, no wind, flat paved road, pas level 1, eco mode, throttle is not engaged. |

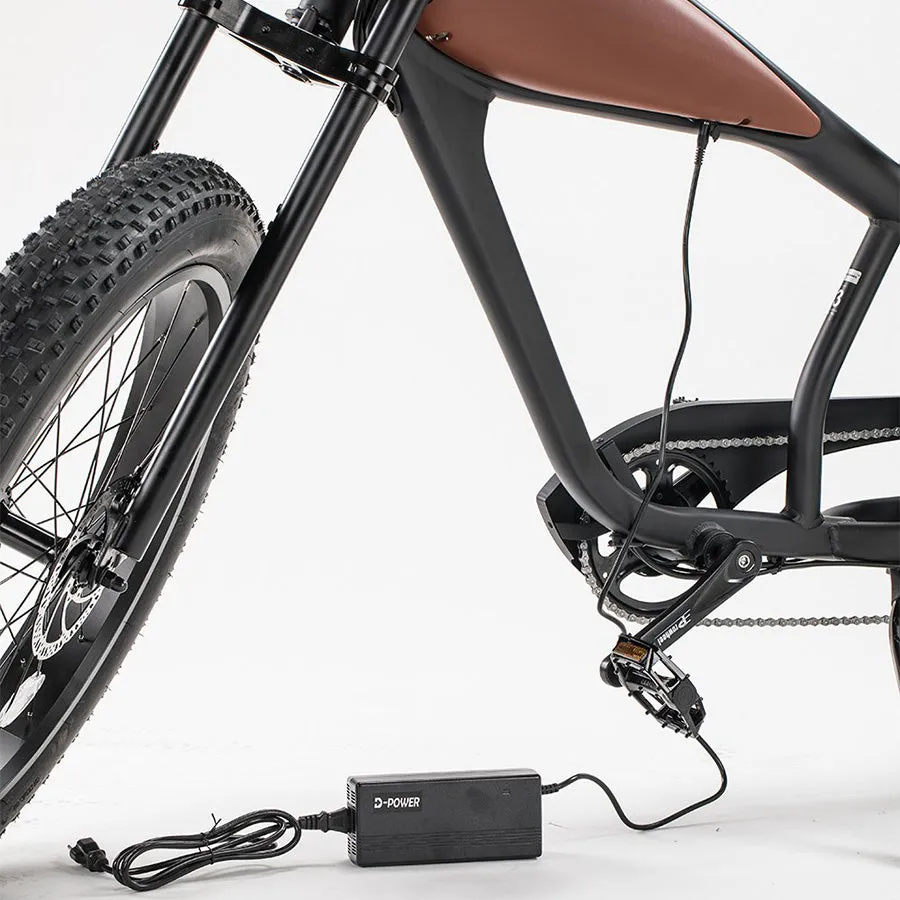

| Charging Time: 4 - 6 Hrs |
| Top Speed: 25-28 |
| Front Light: Included. |
| High/Low Beam Switch: Yes |
| Pedal Assist: 5-9 levels |
| Brake: F/R Hydraulic Brake |

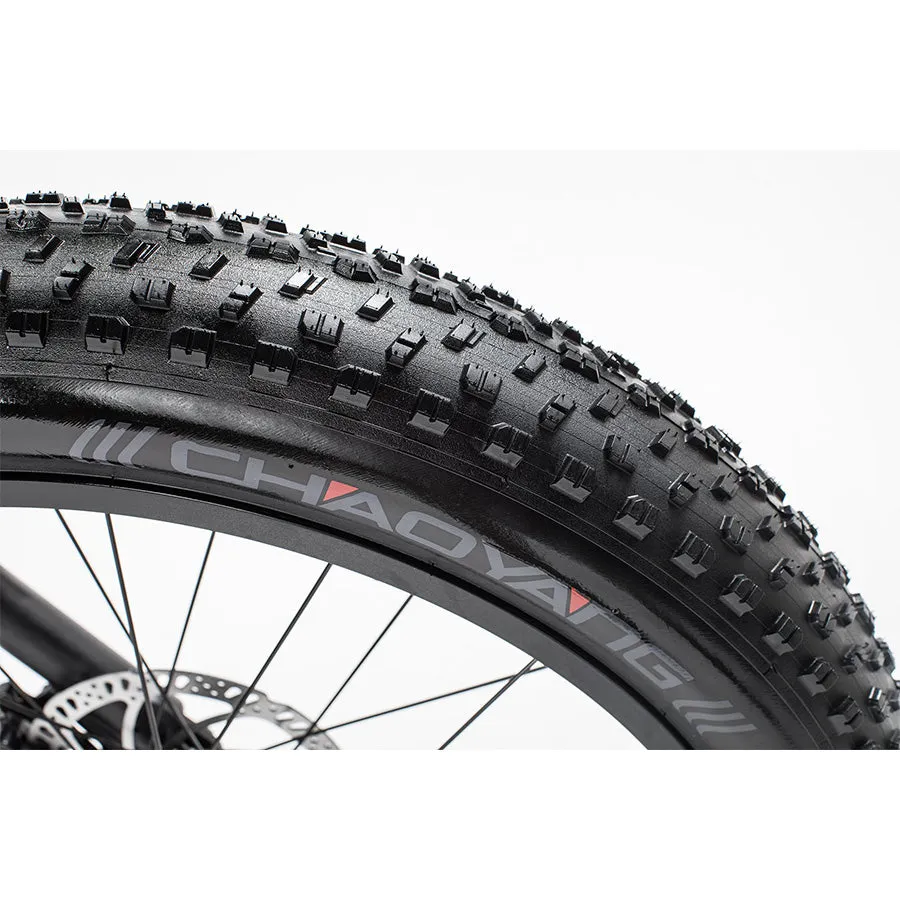

| Wheel Size: 26'' 4.0 Fat Tire |
| Brake Brand: Tektro |

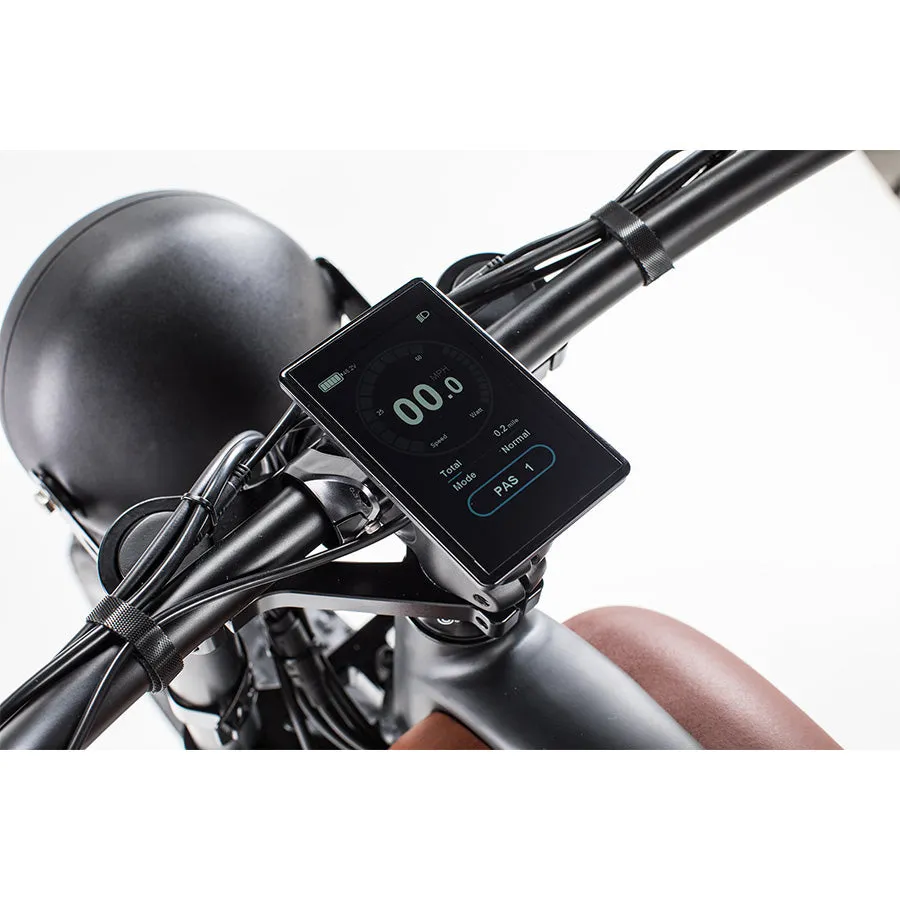

| Display: Full Color |
| Display Function: PAS Level, Current Speed, Max Speed, Odometer, Trip, Daylight and Night Model Selection, Eco, Normal, Power drive model selection |
| Frame Material: 6061 Aluminum Alloy |

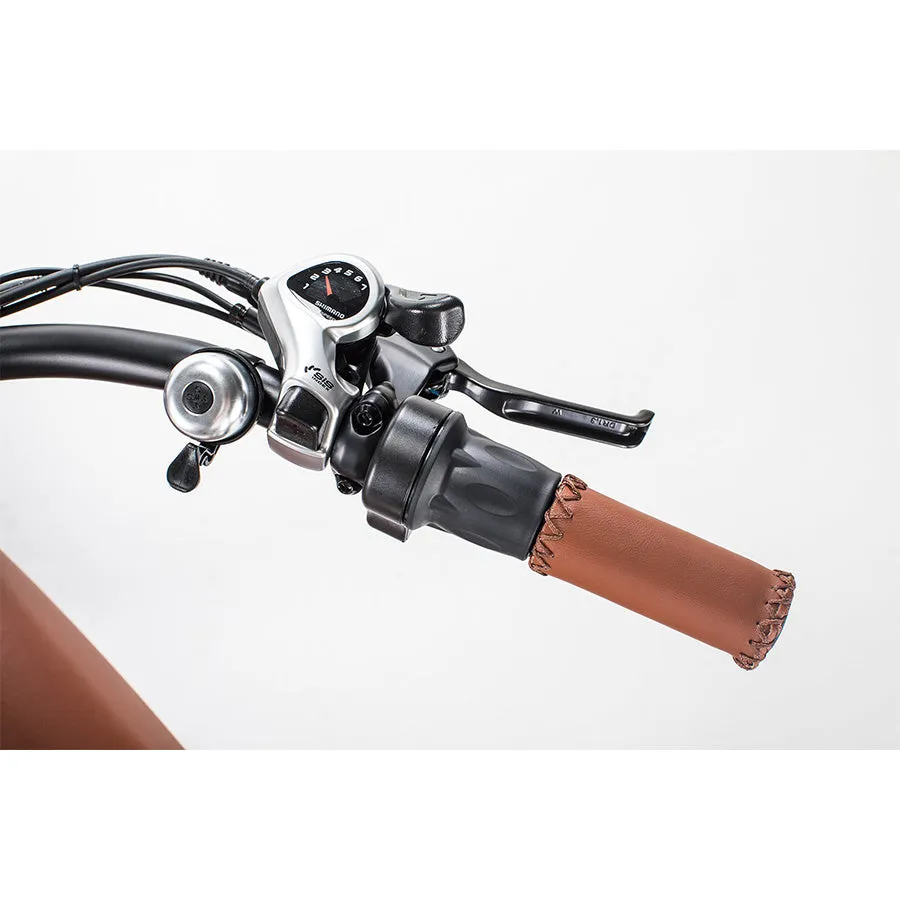

| Shift: 7 Speed SHIMANO™ |
| Crank Wheel: 42T |
| Saddle: Leather with Mechanical Spring |
| Chain: KMC™ Anti-Rust |
| Weight: 74 lbs with battery |
| Payload Capacity：400Ibs |
