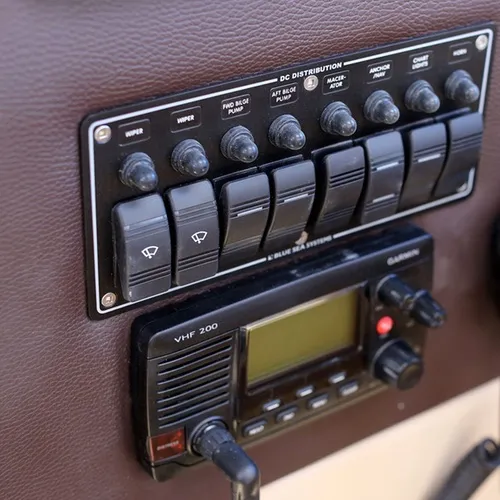

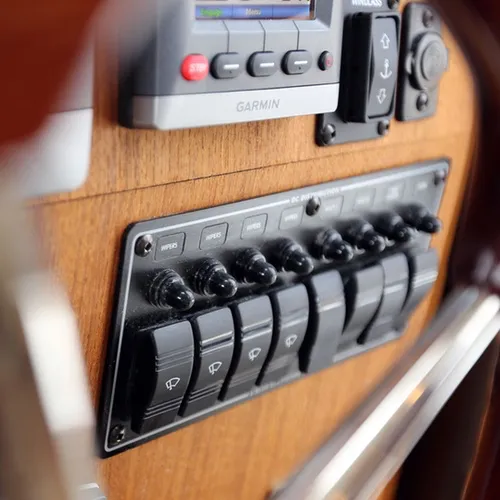

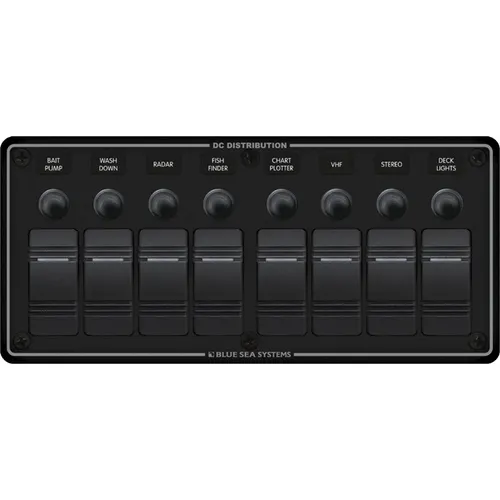

• Designed for flybridge and open cockpit applications
• Panel front is rated IP66-Protected against powerful water jets
• Ignition protected-safe for installation aboard gasoline powered boats
• ON-OFF Contura Switches
• ON indicating LEDs embedded in switch
• Watertight mounting gasket
• Push Button Reset-Only circuit breakers with waterproof boots

  Specifications:
  Weatherproof: Water Resistant
  Positions: 8
  Nominal Voltage: 12V DC/24V DC
  Panel Cumulative Rating: 90A
  Switch Rating: 20A @ 12V DC/15A @ 24V DC
  Height: 4.25in (107.95 mm)
  Width: 9.37in (238 mm)
  Depth: 3.25in (82.55 mm)
  Weight: 1.70lb (0.77 kg)
